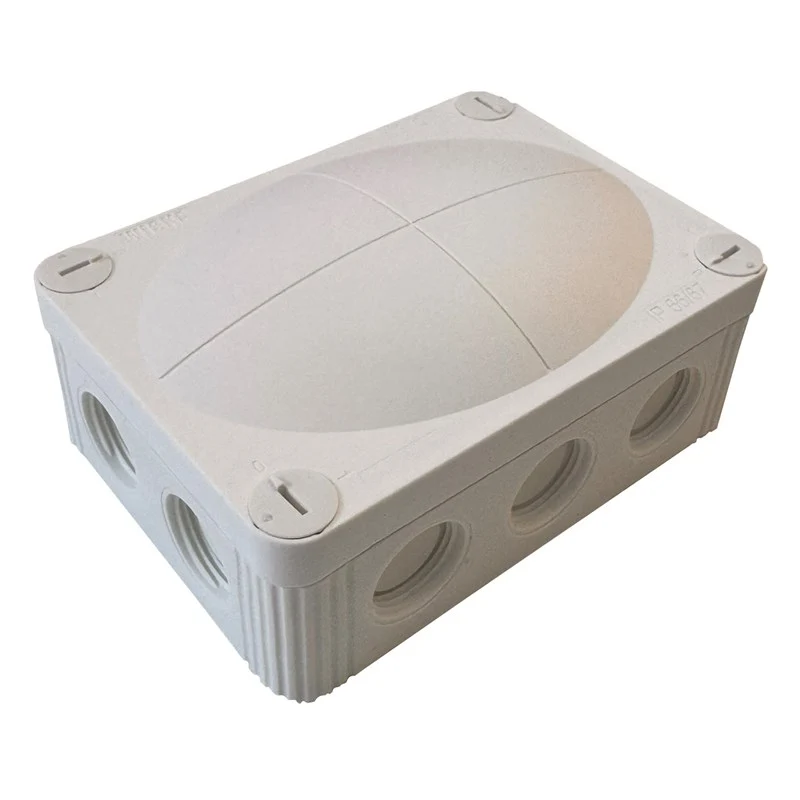

Wiska 10113409 COMBI 310 Empty Polypropelene Junction Box 117x85x51mm – White

Wiska 10113409 COMBI 310 Empty Polypropylene Junction Box 117x85x51mm – White

Product Overview

The Wiska 10113409 COMBI 310 Junction Box is a high-quality, empty enclosure crafted from polypropylene with a TPE sealing gasket, providing superior protection for electrical connections in both indoor and outdoor environments. The white finish gives a clean, modern appearance suitable for residential, commercial, and industrial installations.

Engineered for durability and ease of installation, the COMBI 310 delivers IP66/IP67 protection against dust and water ingress and features multiple cable entry options for maximum versatility. Ideal for use in demanding electrical applications requiring a reliable, watertight connection solution.

Key Features

• Type: COMBI 310 WH / Empty
• Colour: White (RAL 9003)
• Material: Polypropylene enclosure with TPE sealing gasket
• Temperature Range: -30°C to +100°C (installation: -5°C to +60°C)
• Protection Class: IP66 using membrane entry; IP67 with ESKV cable gland and threaded entry
• Glow Wire Test: 750°C fire resistance
• Voltage Rating: 400V
• Rated Cross Section: Up to 4mm²
• Cable Diameter Range: 3mm to 12mm
• External Dimensions (L x W x H): 117 x 85 x 51mm
• Cable Gland Thread Type: M20 x 1.5
• Fixing: 4 internal openings located outside of the sealing area for easy mounting

Included Equipment

• 10 x M20 threaded membrane entries
• 4 x captive cover screws
• Mounting clip for straightforward installation

Installation Notes

IP66 protection is achieved when using the integrated membrane entry. For full IP67 protection, use the threaded entry with an ESKV cable gland. The internal fixing points are positioned outside the sealing area to maintain enclosure integrity.

Data Sheet

Download COMBI 310 White Data Sheet
