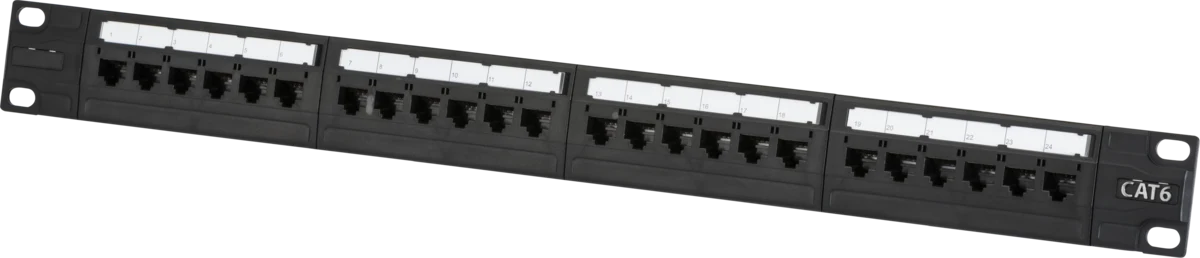

Knightsbridge NETC624 19 inch 1U UTP CAT6 24-port Patch Panel

Knightsbridge NETC624 19 inch 1U UTP CAT6 24-port Patch Panel

Premium grade modular type patch panel.

Features

– 19 inch rackmount
– 1U
– 24-port
– UTP CAT6
– 110 and Universal IDC
– RJ45 ports (Phosphor Bronze with 50 micron gold plating)
– Compliant to ANSI TIA EIA-568-C.2, ISO IEC 11801, ANSI TIA EIA-569-B, ISO IEC 60603-7, ANSI TIA EIA-310-D, PoE+

Specification

– Insulation Resistance: greater than 500MΩ
– Dielectric Withstand Voltage: 1000V DC
– Contact Resistance: less than 20 mΩ
– Current Rating: 1.5A @ 68℉
– Plug insertion Life: 750 times RJ45 plus 200 times
– Contact Force 99.2g (3.5oz) FCC Plug
– Plug Retention Force: 30lb (133n, 13.3Kg)
– 110/Universal IDC Insertion Force: 4.5Kg minimum
– 110/Universal IDC Retention Force: 0.5Kg minimum
– Temperature Test: -40 to 150℉ (-40 to 66℃)

Data Sheet:

Click Here for Data Sheet
