Product Description

The FuseBox TPNFS032 TP&N Metal Fused Switch combines a robust rotary isolator with integrated fuse protection, delivering dependable circuit isolation and overload protection for commercial and industrial installations.

Rated at 32A (AC-23A), this model is supplied with 10×38 gG fuses, providing effective mixed-load protection for high-current equipment where safety and reliability are essential. A clearly visible red and yellow rotary handle offers positive ON/OFF indication, while the mechanical door interlock prevents enclosure access when the switch is in the ON position.

For enhanced safety during maintenance, the handle can be padlocked in the OFF position (up to three padlocks). Housed in a durable 1.2mm steel enclosure with a powder-coated RAL 7035 grey finish, the unit is rated IP65, making it suitable for demanding environments.

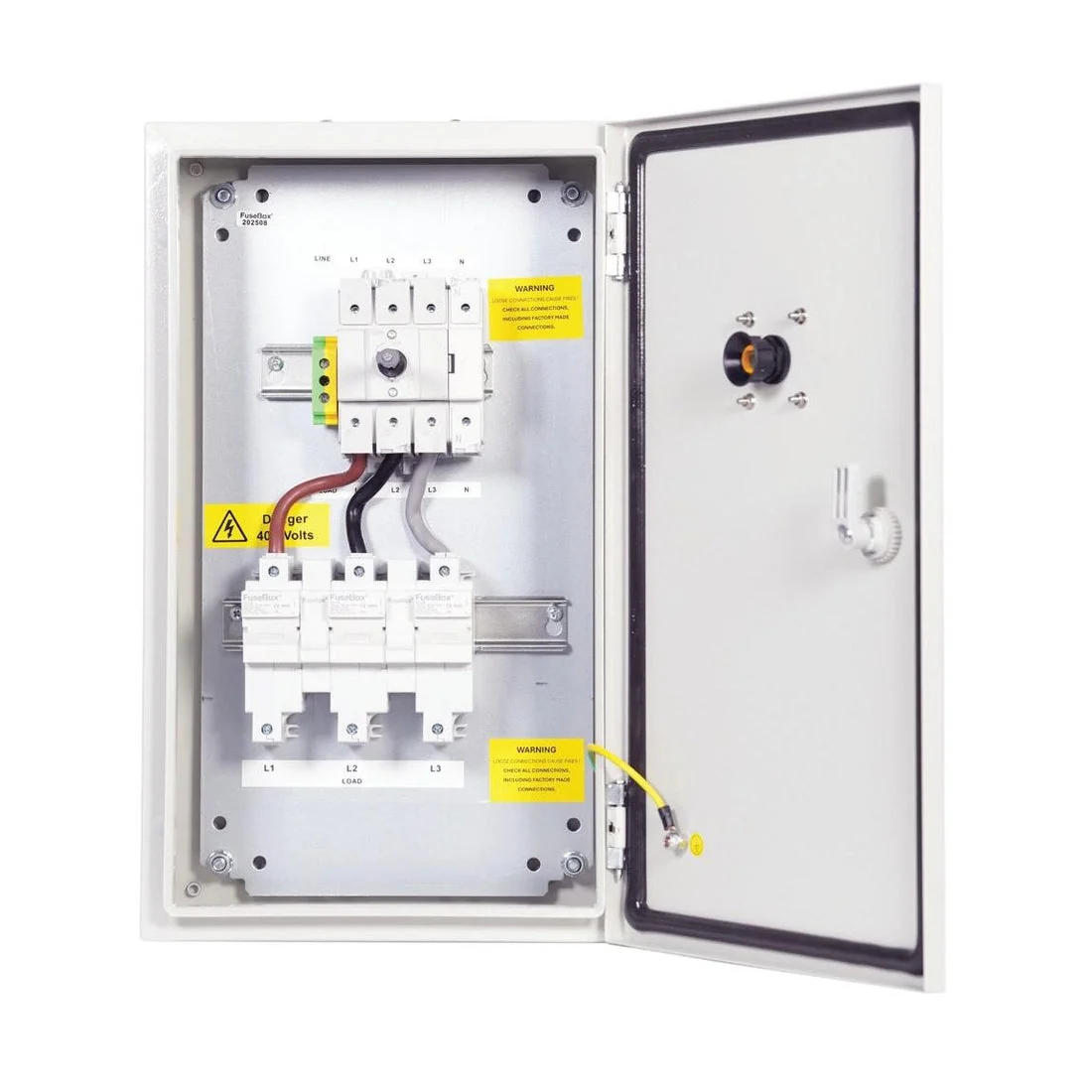

Designed with installers in mind, the spacious internal layout allows for fast, straightforward cable termination. The switch is fully compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 32A AC-23A rated TP&N fused switch for commercial and industrial use
• Integrated gG fuse protection for safe mixed-load operation
• Manual isolation combined with automatic overload protection
• IP65-rated metal enclosure for harsh environments
• Heavy-duty 1.2mm steel construction with RAL 7035 powder-coat finish
• Red/yellow rotary handle with clear ON/OFF indication
• Mechanically interlocked door prevents access when switched ON
• Padlockable handle in OFF position (supports up to 3 padlocks)
• Removable gland plates at top and bottom for flexible cable entry
• Spacious internal wiring area for quick and tidy installation
• Operating temperature range: -25°C to +55°C
